PA02
Features

up This successor to the PA01 control power supply features new features.
■ newSimultaneous display of set and output values ​​on a dual-level display significantly improves visibility.
■ newWide range of units and ranges: %, mV, SCCM, SLM, mL/min, L/min (adjustable in the settings screen).
■ newIntegrated flow rate alarm function.
■ newExternal input: Switchable via the front switch to input from the rear terminal (0-5VDC).
● Easy operation.
■ Versatile installation options with both panel mounting and floor mounting.
■ Mass flow controller power supply: ±15VDC.
■ Input/output: Analog (0-5V) signal.
■ External output: Output from the rear terminal (0-5VDC).
Product Catalog

PA02 Catalog
◀ ［PA02］ Catarog Download.
Specification
Model PA02
Power supply AC100－240V
Output Power 0～5VDC：+15VDC：300mA　-15VDC：200mA
Flow rate setting 0～5VDC　Variable with 10-turn potentiometer.(Conforms to MFC control range)
flow rate output 0～5VDC (Output possible from rear terminal)
Flow rate setting and flow rate output display Range can be set according to scaling (flow rate setting and flow rate output displayed in two stages)
External Input Settings Switched with the EXT-INT_SW on the front (Displays External when set to EXT)
Signal cable connector D-sub 9-pin connector (female on power supply side)
Usage environment 5 to 50°C (Accuracy guaranteed range: 15 to 35°C, 85% RH or less (no condensation)
External input/output terminal Rear terminal block (external input/flow rate output)
Accessory User's manual, Written guarantee, AC cord, grounded conversion plug

※ The mass flow controller flow rate units [SCCM, SLM] are calibrated at 0°C and 1013kPa abs (1atm).
※ The mass flow controller flow rate units [CCM, LM] are calibrated at 25°C as our standard unless otherwise specified.

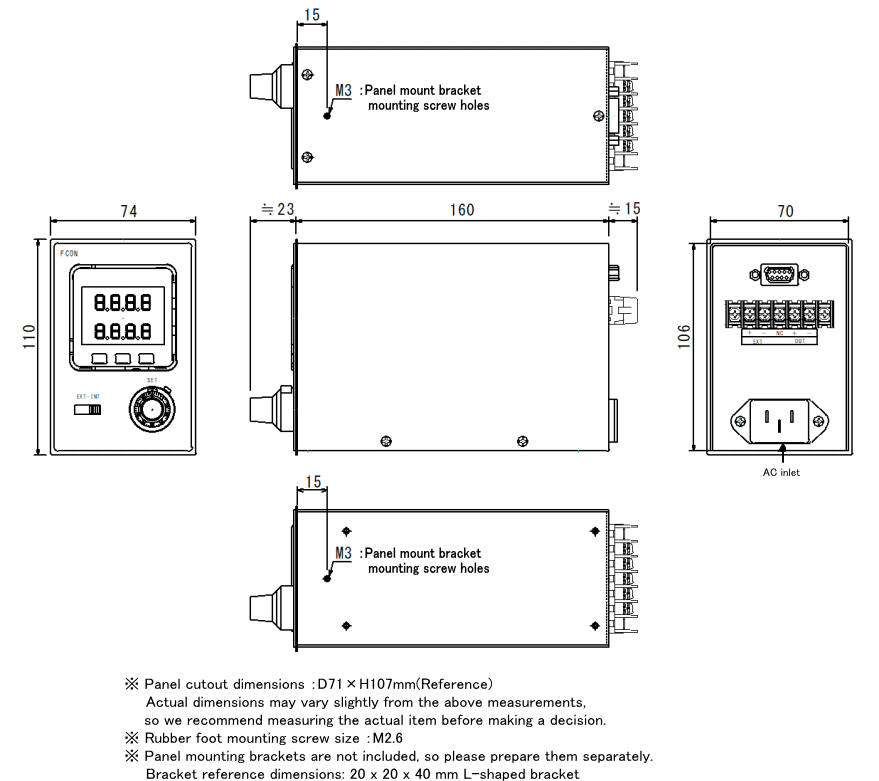

External Dimensions
PA02
Signal cable (sold separately)

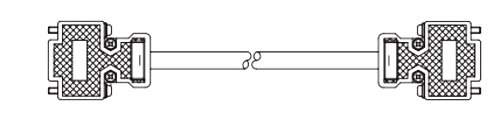

signal cable

● D-sub 9-pin female connector on MFC side ⇔ D-sub 9-pin male connector on control power supply side
● Standard cable length: 1m (SC01), 2m (SC02), 3m (SC03)
※ Please inquire separately for cable lengths over 3m.
※ This cable is for connection to the 1000 series.
※ Analog control signal cables for the 2000 series have a half-pitch 20-pin connector on the MFC side. Please inquire separately.

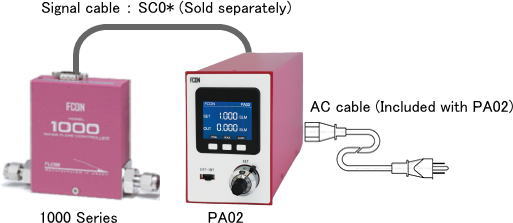

Connection with the 1000 series
Connection
